SERIAL NO.
1
TORCH BODY& BACK CAPS
MODEL
S Classic 9
S Classic 9V
S Classic 9F
S Classic 9FV
S Classic 9P
S Classic 20
S Classic 20V
S Classic 20F
PART NO.
WP17.TB01.00
WP17.TB0V.00
WP17.TB0F.00
WP17.TBFV.00
WP17.TB0P.00
WP26.TB01.00
WP26.TB0V.00
WP26.TB0F.00
DESCRIPTION

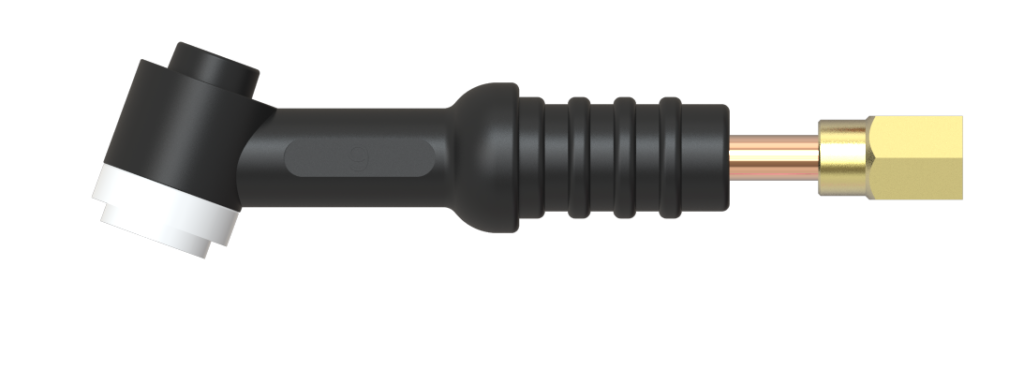

Torch Body Standard
Torch Body with Valve
Torch Body Flexible
Torch Body with Valve, Flexible
Torch Body Pencil

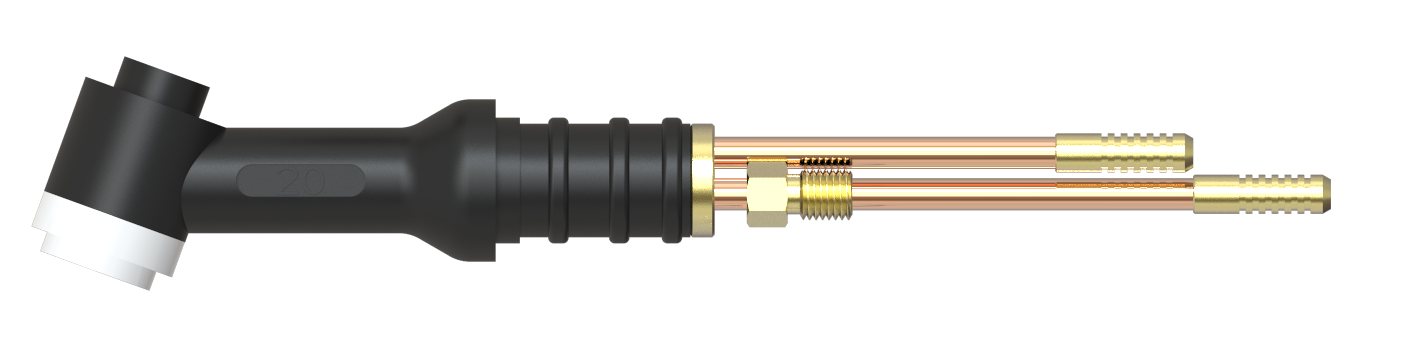

Torch Body Standard
Torch Body with Valve
Torch Body Flexible
TORCH TYPE
9
9
9
9
9
20
20
20
2
3
4
5
O RING
98W77
41V24
41V35

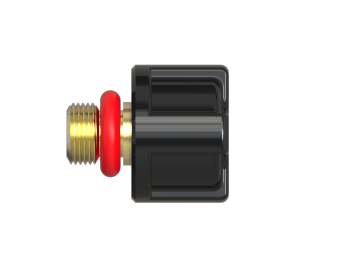

41V33
98W77
200X.YM01.00
200X.YM02.00
200X.YM03.00
O-ring Back Cap
Long Back Cap
Medium Back Cap
Short Back Cap
9/20
9/20
9/20
9/20
6
7
598882
598882
13N20
13N21
13N22
13N23
13N24
2009.BM01.00
2009.WJ01.05
2009.WJ01.10
2009.WJ01.16
2009.WJ01.24
2009.WJ01.32
Cup Gasket

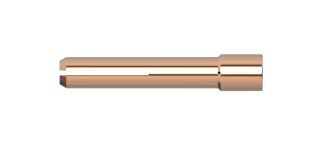

Collet 0.020” (0.5mm)
Collet 0.040” (1.0mm)
Collet 1/16” (1.6mm)
Collet 3/32” (2.4mm)
Collet 1/8” (3.2mm)
9/20
9/20
9/20
9/20
9/20
9/20
8
13N25
13N26
13N27
13N28
13N29
2009.JZ01.05
2009.JZ01.10
2009.JZ01.16
2009.JZ01.24
2009.JZ01.32

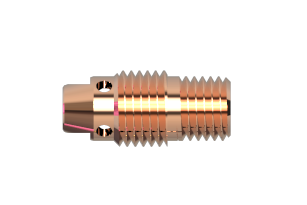

Collet Body 0.020” (0.5mm)
Collet Body 0.040” (1.0mm)
Collet Body 1/16” (1.6mm)
Collet Body 3/32” (2.4mm)
Collet Body 1/8” (3.2mm)
9/20
9/20
9/20
9/20
9/20
9
13N08
13N09
13N10
13N11
13N12
13N13
2000.PZ01.04
2000.PZ01.05
2000.PZ01.06
2000.PZ01.07
2000.PZ01.08
2000.PZ01.10
Ceramic Cup 1/4” (6.4mm)
Ceramic Cup 5/16” (7.9mm)
Ceramic Cup 3/8” (9.5mm)
Ceramic Cup 7/16” (11.1mm)
Ceramic Cup 1/2” (12.7mm)
Ceramic Cup 5/8” (15.8mm)
9/20
9/20
9/20
9/20
9/20
9/20
10
11
796F70
796F71
796F72
796F73
796F74
796F75
796F76
796F77
2000.PZ02.03
2000.PZ02.04
2000.PZ02.05
2000.PZ02.06
2000.PZ03.03
2000.PZ03.04
2000.PZ03.05
2000.PZ03.06

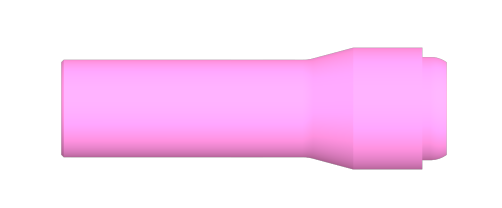

Long Ceramic Cup 3/16”(4.8mm)
Long Ceramic Cup 1/4” (6.4mm)
Long Ceramic Cup 5/16” (7.9mm)
Long Ceramic Cup 3/8” (9.5mm)

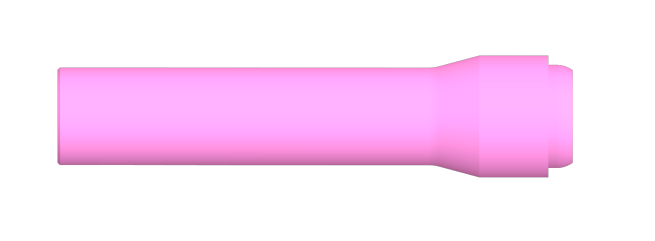

Extra Long Cup 3/16” (4.8mm)
Extra Long Cup 1/4” (6.4mm)
Extra Long Cup 5/16” (7.9mm)
Extra Long Cup 3/8” (9.5mm)
9/20
9/20
9/20
9/20
9/20
9/20
9/20
9/20
12

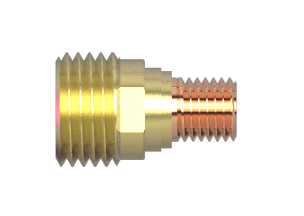

45V41
45V42
45V43
45V44
45V45
2009.QS01.05
2009.QS01.10
2009.QS01.16
2009.QS01.24
2009.QS01.32
Gas Lens 0.020” (0.5mm)
Gas Lens 0.040” (1.0mm)
Gas Lens 1/16” (1.6mm)
Gas Lens 3/32” (2.4mm)
Gas Lens 1/6” (3.2mm)
9/20
9/20
9/20
9/20
9/20
13
53N58
53N59
53N60
53N61
53N61S
2000.PZ04.04
2000.PZ04.05
2000.PZ04.06
2000.PZ04.07
2000.PZ04.08
Gas Lens Cup 1/4” (6.4mm)
Gas Lens Cup 5/16” (7.9mm)
Gas Lens Cup 3/8” (9.5mm)
Gas Lens Cup 7/16” (11mm)
Gas Lens Cup 1/2” (12.7mm)
9/20
9/20
9/20
9/20
9/20
14
15
16
53N63-20
13N20L
13N21L
13N22L
13N23L
13N24L
45V0204S
45V116S
45V64S
995795S
2009.BM03.00
2009.WJ02.05
2009.WJ02.10
2009.WJ02.16
2009.WJ02.24
2009.WJ02.32
2009.QS03.10
2009.QS03.16
2009.QS03.24
2009.QS03.32
Large Gas Lens Insulator

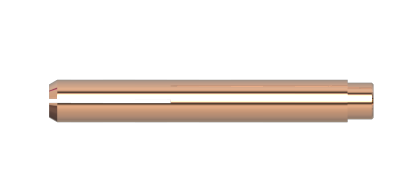

Large Gas Lens Collet 0.020”
Large Gas Lens Collet 0.040”
Large Gas Lens Collet 1/16”
Large Gas Lens Collet 3/32”
Large Gas Lens Collet 1/8”
Large Gas Lens 0.020” (
Large Gas Lens 1/16” (1.6mm)
Large Gas Lens 3/32” (2.4mm)
Large Gas Lens 1/8” (3.2mm)
9/20
9/20
9/20
9/20
9/20
9/20
9/20
9/20
9/20
9/20
17
57N75
57N74
57N88
57N87
2000.PZ05.06
2000.PZ05.08
2000.PZ05.10
2000.PZ05.012
Large Gas Lens Cup 3/8” (9.5mm)
Large Gas Lens Cup 1/2” (12.7mm
Large Gas Lens Cup 5/8” (15.8mm)
Large Gas Lens Cup 3/4” (19.1mm)
9/20
9/20
9/20
9/20
