SERIAL NO.
1

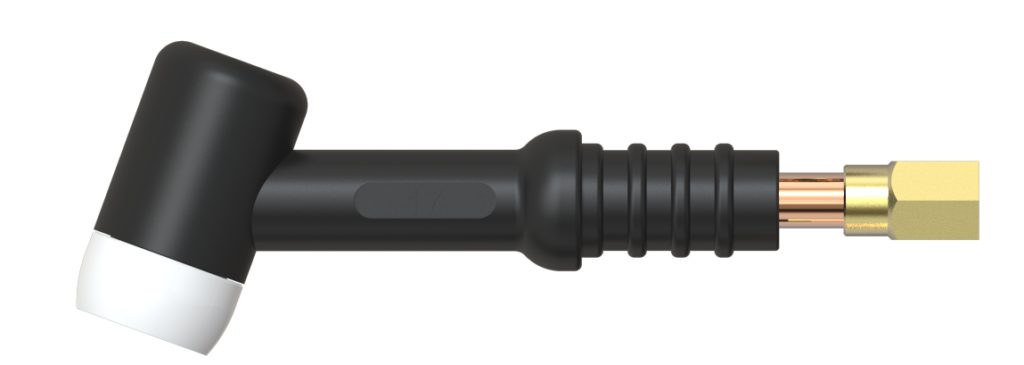

TORCH BODY& BACK CAPS
MODEL
S Classic 17
S Classic 17V
S Classic 17F
S Classic 17FV
S Classic 17P
S Classic 26
S Classic 26V
S Classic 26F
S Classic 26FV
S Classic 26P
S Classic 18
S Classic 18V
S Classic 18F
S Classic 18P
PART NO.
WP17.TB01.00
WP17.TB0V.00
WP17.TB0F.00
WP17.TBFV.00
WP17.TB0P.00
WP26.TB01.00
WP26.TB0V.00
WP26.TB0F.00
WP26.TBFV.00
WP26.TB0P.00
WP18.TB01.00
WP18.TB0V.00
WP18.TB0F.00
WP18.TB0P.00
DESCRIPTION
Torch Body Standard
Torch Body with Valve
Torch Body Flexible
Torch Body with Valve, Flexible
Torch Body Pencil

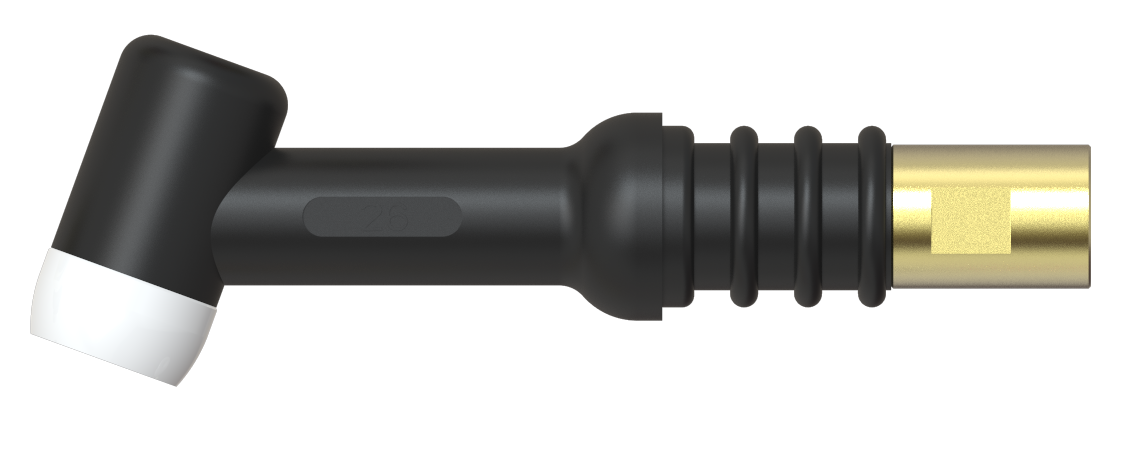

Torch Body Standard
Torch Body with Valve
Torch Body Flexible
Torch Body with Valve, Flexible
Torch Body Pencil

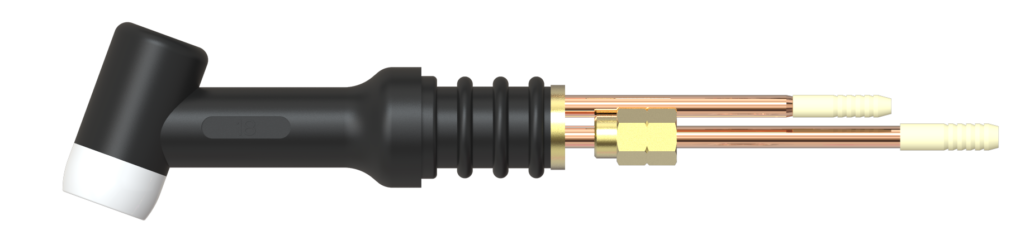

Torch Body Standard
Torch Body with Valve
Torch Body Flexible
Torch Body Pencil
TORCH TYPE
17
17
17
17
17
26
26
26
26
26
18
18
18
18
2
3
4
O RING
98W18
57Y02
300M
57Y04
98W18
200D.YM01.00
200D.YM02.00
200D.YM03.00
O-ring Back Cap

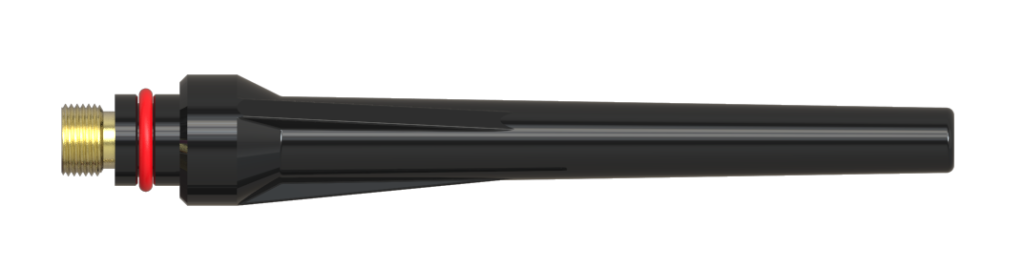

Long Back Cap
Medium Back Cap

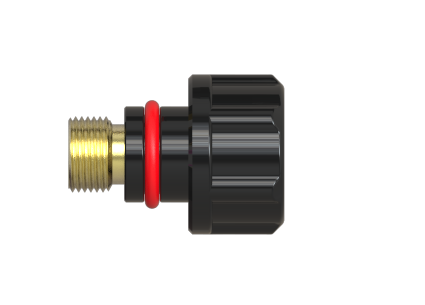

Short Back Cap
17/18/26
17/18/26
17/18/26
17/18/26
5
6
18CG
18CG
10N21
10N22
10N23
10N24
10N25
54N20
2017.BM01.00
2017.WJ01.05
2017.WJ01.10
2017.WJ01.16
2017.WJ01.24
2017.WJ01.32
2017.WJ01.40
Cup Gasket

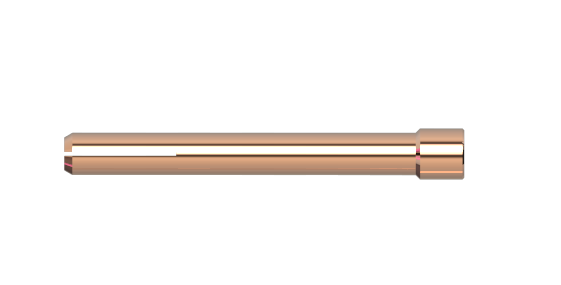

Collet 0.020” (0.5mm)
Collet 0.040” (1.0mm)
Collet 1/16” (1.6mm)
Collet 3/32” (2.4mm)
Collet 1/8” (3.2mm)
Collet 5/32” (4.0mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
18/26
7
10N29
10N30
10N31
10N32
10N28
2017.JZ01.05
2017.JZ01.10
2017.JZ01.16
2017.JZ01.24
2017.JZ01.32

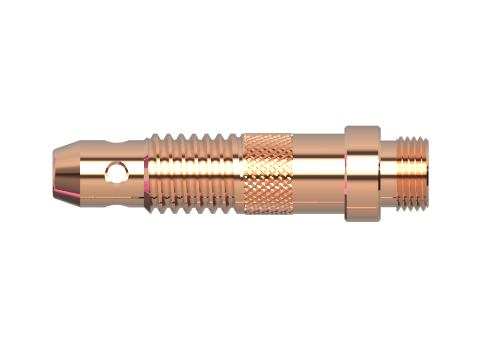

Collet Body 0.020” (0.5mm)
Collet Body 0.040” (1.0mm)
Collet Body 1/16” (1.6mm)
Collet Body 3/32” (2.4mm)
Collet Body 1/8” (3.2mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
8
10N49L
10N48L
10N47L
2000.PZ07.05
2000.PZ07.06
2000.PZ07.07

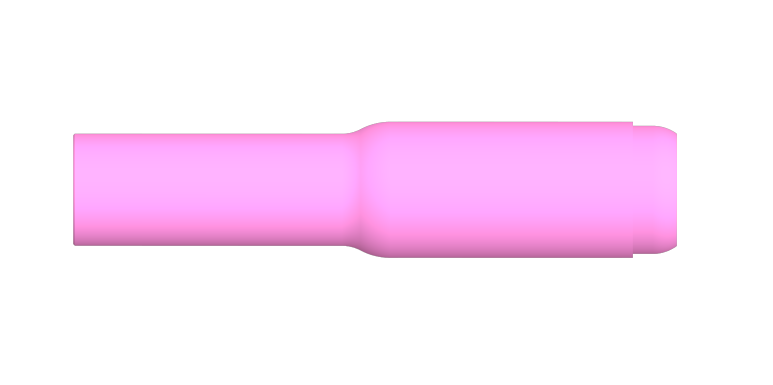

Long Standard Cup 5/16”
Long Standard Cup 3/8”
Long Standard Cup 7/16”
17/18/26
17/18/26
17/18/26
9
10N50
10N49
10N48
10N47
10N46
10N45
10N44
2000.PZ06.04
2000.PZ06.05
2000.PZ06.06
2000.PZ06.07
2000.PZ06.08
2000.PZ06.10
2000.PZ06.12

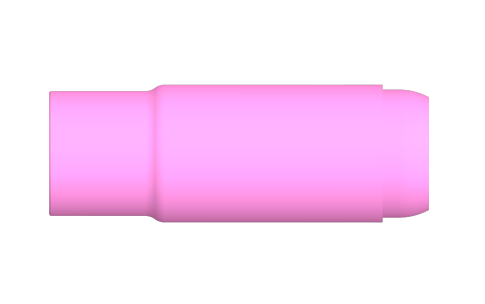

Ceramic Cup 1/4” (6.4mm)
Ceramic Cup 5/16” (7.9mm)
Ceramic Cup 3/8” (9.5mm)
Ceramic Cup 7/16” (11mm)
Ceramic Cup 1/2” (12.7mm)
Ceramic Cup 5/8” (15.8mm)
Ceramic Cup 3/4” (19.1mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
10
11
54N01
45v29
45v24
45v25
45v26
45v27
45v28
2017.BM03.00
2017.QS01.05
2017.QS01.10
2017.QS01.16
2017.QS01.24
2017.QS01.32
2017.QS01.40
Gas Lens Insulator

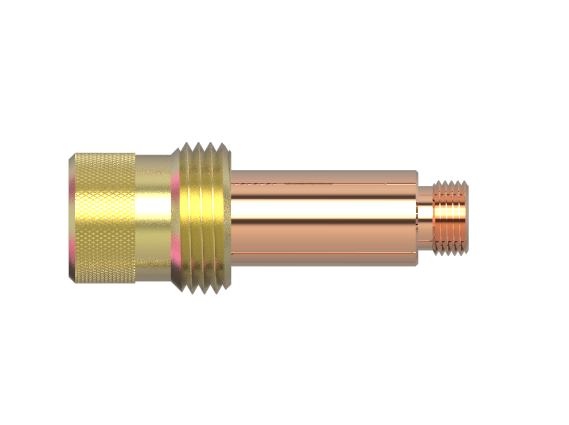

Gas Lens 0.020” (0.5mm)
Gas Lens 0.040” (1.0mm)
Gas Lens 1/16” (1.6mm)
Gas Lens 3/32” (2.4mm)
Gas Lens 1/6” (3.2mm
Gas Lens 5/32” (4.0mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
12
54N17L
54N16L
54N15L
2000.PZ09.05
2000.PZ09.06
2000.PZ09.07

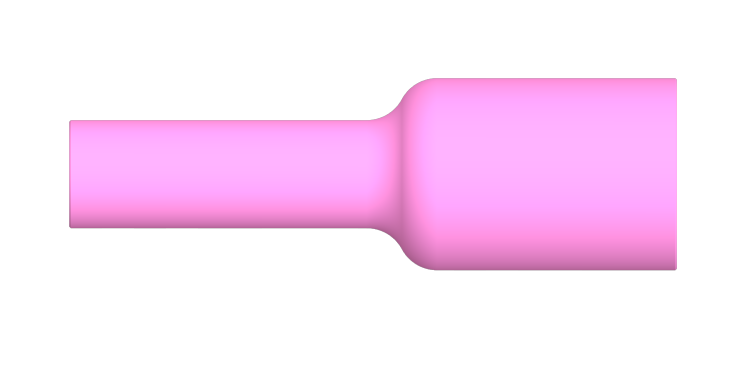

Long Gas Lens Cup 5/16”
Long Gas Lens Cup 3/8”
Long Gas LensCup 7/16”
17/18/26
17/18/26
17/18/26
13
54N18
54N17
54N16
54N15
54N14
54N19
2000.PZ08.04
2000.PZ08.05
2000.PZ08.06
2000.PZ08.07
2000.PZ08.08
2000.PZ08.11

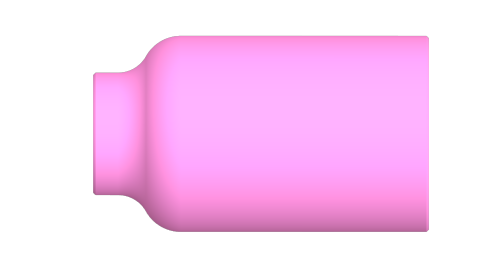

Gas Lens Cup 1/4” (6.4mm)
Gas Lens Cup 5/16” (7.9mm)
Gas Lens Cup 3/8” (9.5mm)
Gas Lens Cup 7/16” (11mm)
Gas Lens Cup 1/2” (12.7mm)
Gas Lens Cup 1/16” (17.5mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
14
15
16
54N63
45V0204
45V116
45V64
995795
45V63
57N75
57N74
57N87
57N88
54N63
2017.QS03.05
2017.QS03.16
2017.QS03.24
2017.QS03.32
2017.QS03.40
2000.PZ05.06
2000.PZ05.08
2000.PZ05.10
2000.PZ05.12
Large Gas Lens Insulator

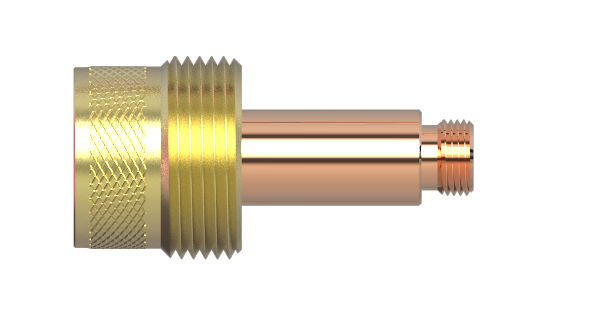

Large Gas Lens 0.5 – 1.0mm
Large Gas Lens 1/16” (1.6mm)
Large Gas Lens 3/32” (2.4mm)
Large Gas Lens 1/8” (3.2mm)
Large Gas Lens 5/32” (4.0mm

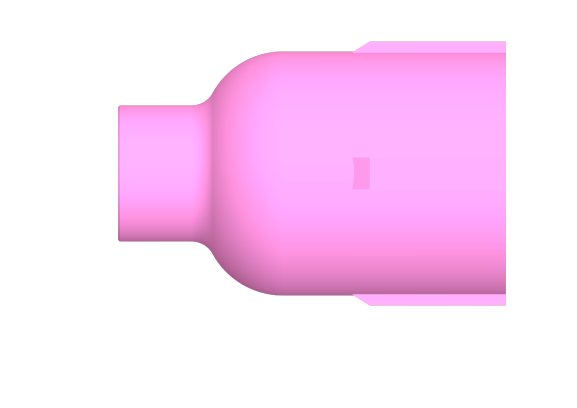

Large Gas Lens Cup 3/8”
Large Gas Lens Cup 1/2”
Large Gas Lens Cup 5/8”
Large Gas Lens Cup 3/4”
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17
18
19
20
18CG20
18CG20
10N22S
10N23S
10N24S
10N25S
17CB20
13N08
13N09
13N10
13N11
13N12
13N13
18CG20
2017.WJ02.10
2017.WJ02.16
2017.WJ02.24
2017.WJ02.32
2017.JZ02.32
2000.PZ01.04
2000.PZ01.05
2000.PZ01.06
2000.PZ01.07
2000.PZ01.08
2000.PZ01.10
Stubby Cup Gasket
Stubby Collet 0.040” (1.0mm)
Stubby Collet 1/16” (1.6mm)
Stubby Collet 3/32” (2.4mm)
Stubby Collet 1/8” (3.2mm)
Stubby Collet Body 0.5 – 3.2mm
Stubby Cup 1/4” (6.4mm)
Stubby Cup 5/16” (7.9mm)
Stubby Cup 3/8” (9.5mm)
Stubby Cup 7/16” (11.1mm)
Stubby Cup 1/2” (12.7mm)
Stubby Cup 5/8” (15.8mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
21
22
23
17GLG20
17GL040
17GL116
17GL332
17GL18
53N58
53N59
53N60
53N61
53N61S
2017.BM04.00
2017.QS02.10
2017.QS02.16
2017.QS02.24
2017.QS02.32
2000.PZ04.04
2000.PZ04.05
2000.PZ04.06
2000.PZ04.07
2000.PZ04.08
Stubby Gas Lens Cup Gasket
Stubby Gas Lens 0.040” (1.0mm)
Stubby Gas Lens 1/16” (1.6mm)
Stubby Gas Lens 3/32” (2.4mm)
Stubby Gas Lens 1/8” (3.2mm)
Gas Lens Cup 1/4” (6.4mm)
Gas Lens Cup 5/16” (7.9mm)
Gas Lens Cup 3/8” (9.5mm)
Gas Lens Cup 7/16” (11.1mm)
Gas Lens Cup 1/2” (12.8mm)
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
17/18/26
